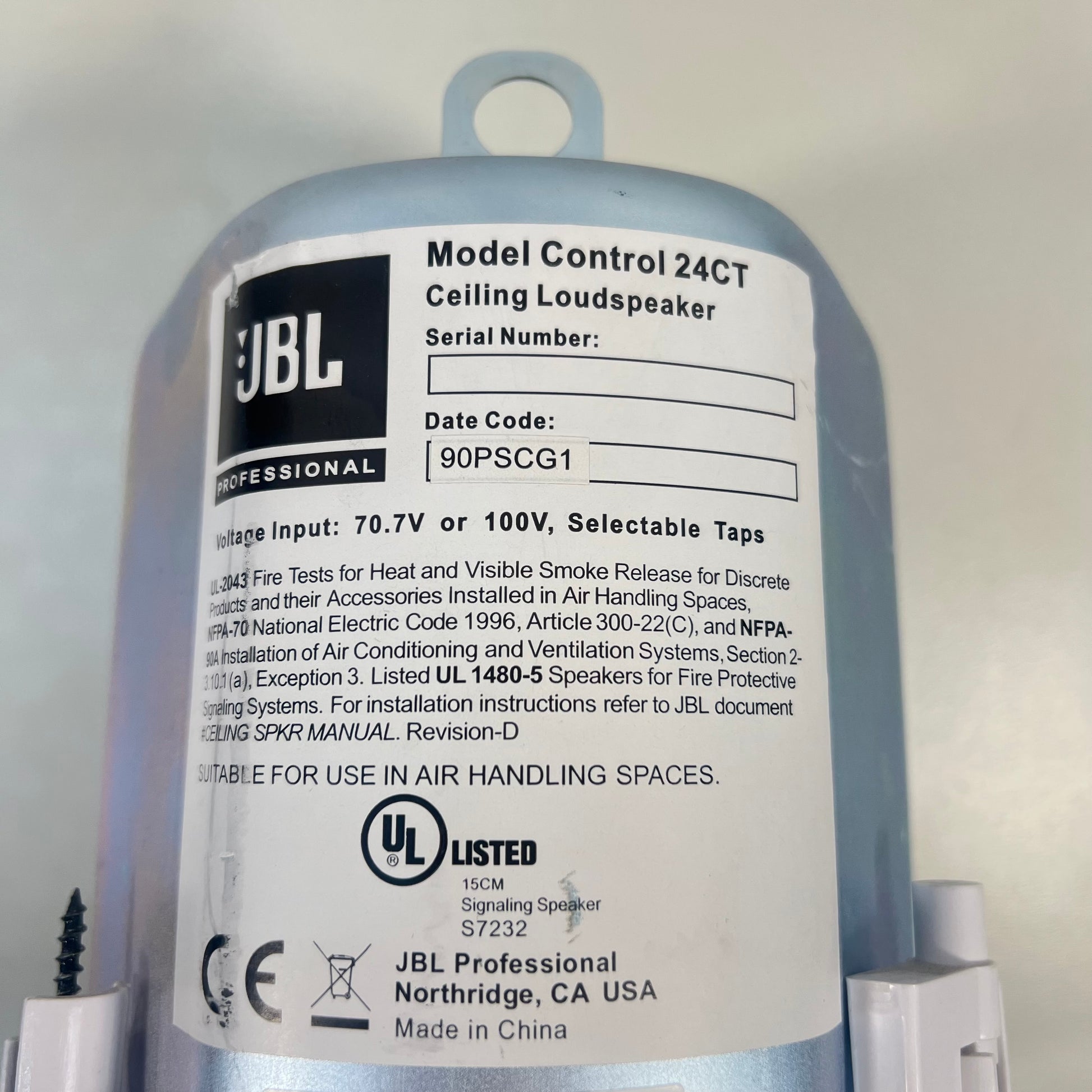

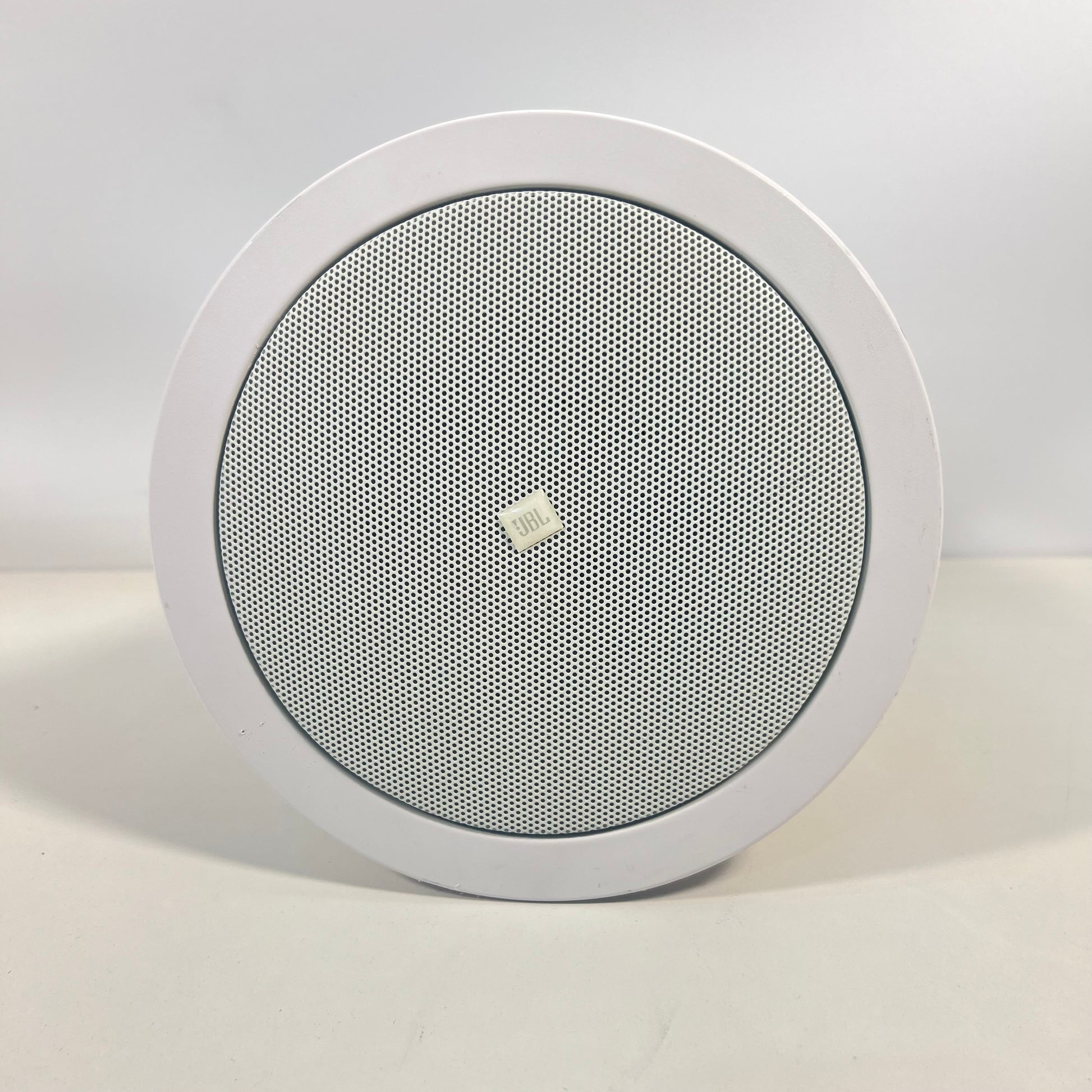

JBL Model Control 24C Ceiling Loudspeaker
JBL Model Control 24C Ceiling Loudspeaker
Stock: 5
Couldn't load pickup availability
JBL Model Control 24C Ceiling Loudspeaker
Note: Not Tested No Accessories cables are included (No Power cable)
Specifications
Frequency Range - 80 Hz - 20 kHz
Transformer Taps - 70V: 30W, 15W, 7.5W (& 3.7W @ 70V)
Coverage Angle - 130° conical
Directivity Factor (Q) - 2.4 dB averaged 500 Hz to 4 kHz
Directivity Index (DI) - 3.8 dB averaged 500 Hz to 4 kHz
Maximum SPL (1m) - 102 dB (top 70V/100V tap)
Nominal Impedance - 16 ohms (Min Z 16.1 ohms @ 320 Hz)
Sensitivity - 86 dB (100 Hz - 10 kHz)

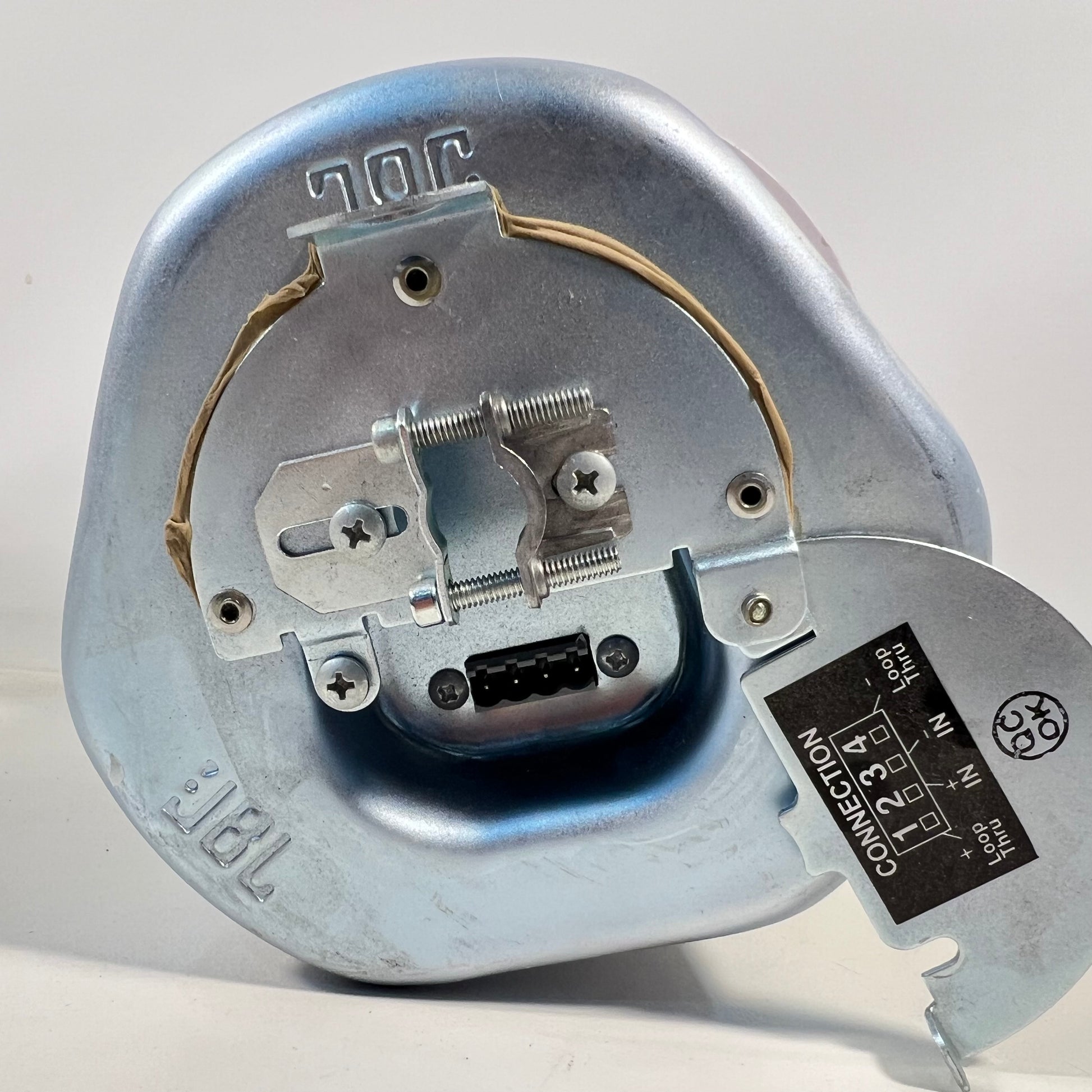

Input Connectors - Removable 4-pin locking connector with screw-down terminals.
Drivers LF Driver: 100 mm (4.0 in)
HF Driver: 19 mm (0.75 in)
